Analigner - Alignment of Models:

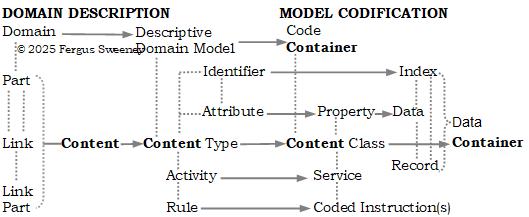

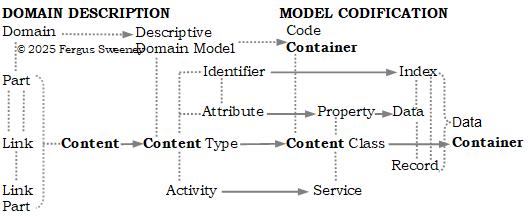

The figure below depicts alignment of descriptive and codified model content, a key feature of Analigner.

Where:

• Domains contain parts, links between parts, or link parts.

• Domain content is classified by type in its descriptive model.

• The attributes, identifiers and focused activity of each content type have a standard description.

• Each content type is codified (aligns to) into a content class in a codified model.

• Content classes are held in appropriate code containers.

• Content type attributes, identifiers, and focused activities align to class properties, data indices and services respectively, and a service supports a specific activity.

• The values of class properties are stored as data in appropriate containers.

• Data containers hold indices, records and specific data for each instance of a content class.

For more information go to modelling language.
